TV Mounting Coast Huntington Beach covers in-wall TV wire concealment in Huntington Beach homes — in-wall rated power relocation kits and in-wall rated HDMI fished through drywall stud bays in tract homes and newer houses, and practical alternatives on plaster, block, stucco and shared condo walls.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
Which walls take in-wall wiring
| Wall | In-wall concealment | Usual approach |
|---|---|---|
| Drywall over wood studs | Yes, in most stud bays | Power kit plus in-wall rated HDMI |
| Drywall with a fire block mid-wall | Yes, with extra drilling | Bit extension through the block |
| Lath and plaster | Possible but slow | Raceway, or a clean bay if one is found |
| Concrete block | No cavity | Raceway painted to the wall |
| Shared condo wall | Avoided | Raceway or console below the TV |
How the kit is installed
- A recessed inlet box is cut into the drywall behind where the TV will hang.
- A second box goes low on the wall near the existing outlet.
- In-wall rated cable and the kit's conductors are fished between the two.
- The TV plugs into the upper inlet; a short cord from the lower box plugs into the outlet.
- HDMI and any network cable run through the same boxes.

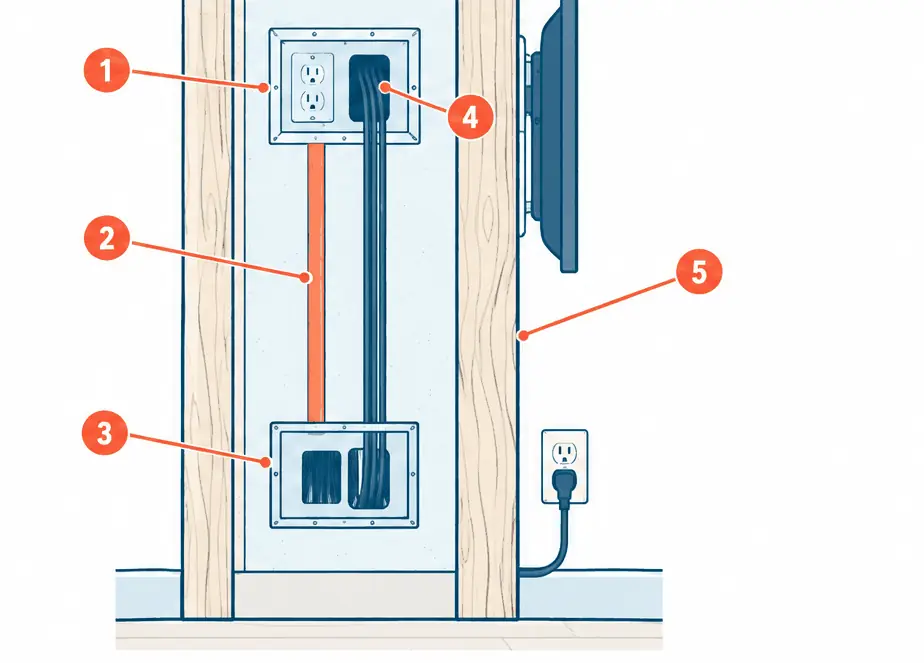

What the numbers show
- Upper recessed box A recessed outlet behind the TV keeps the plug inside the wall depth so the TV can sit close.
- In-wall rated cable The kit's cable is rated for use inside a wall and runs down the stud bay between the two boxes.
- Lower inlet box Near the floor, a power inlet is fed by a short cord from an existing outlet, so no new circuit is cut into.
- Signal pass-through HDMI and network cables pass through an opening in the same box plates and run down the same bay as the power cable.
- Stud bay Both boxes sit in the same bay between two studs, with no fire block in the way.
Raceways that look built-in
Where a wall cannot be opened, a slim raceway painted to the wall, run straight down from the TV to the console, reads as trim rather than a cable cover. Lining it up with the edge of the TV and the console keeps it out of the eye line.
The cleanest TV wall is the one where nothing hangs below the screen.
In-Wall Wire Concealment — common questions
How much does in-wall wire concealment cost in Huntington Beach?
About $99–$169 per TV in 2026 on top of the mount, on a drywall wall with an open stud bay.
Can a new outlet be added behind the TV instead?
Yes, but that is separate electrical work for an electrician. A relocation kit uses the existing outlet.
